# 리소스 조회
kubectl get namespace
kubectl get node
kubectl get pod
master@master:~$ kubectl get namespace
kubectl get node
kubectl get podNAME STATUS AGE
kube-system Active 73m
default Active 73m
kube-public Active 73m
kube-node-lease Active 73m
master@master:~$ kubectl get node
NAME STATUS ROLES AGE VERSION
master Ready master 73m v1.17.4+k3s1
master@master:~$ kubectl get pod
NAME READY STATUS RESTARTS AGE
jinsunginx 1/1 Running 0 16m
master@master:~$
# Cluster 상태 확인
master@master:~$ kubectl cluster-info
Kubernetes master is running at https://127.0.0.1:6443
CoreDNS is running at https://127.0.0.1:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
master@master:~$

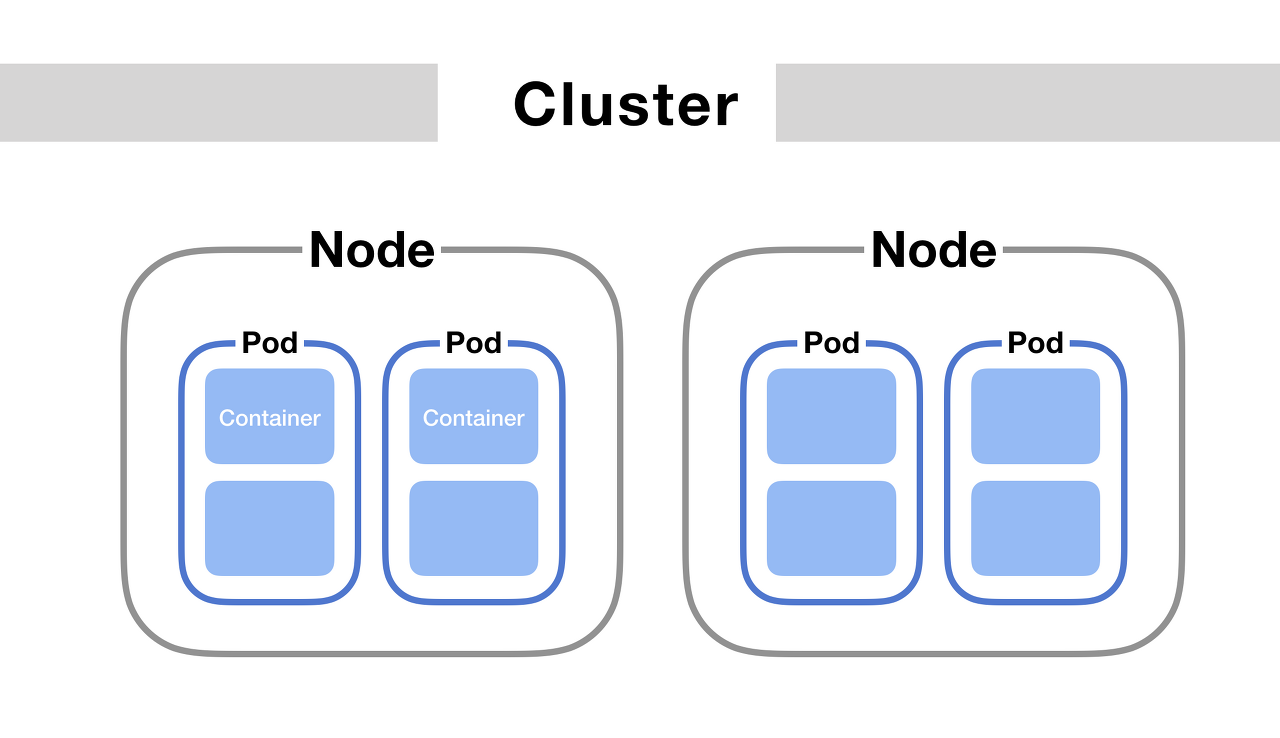

파드(Pod) 는 쿠버네티스에서 생성하고 관리할 수 있는 배포 가능한 가장 작은 컴퓨팅 단위이다.
파드 (고래 떼(pod of whales)나 콩꼬투리(pea pod)와 마찬가지로)는 하나 이상의 컨테이너의 그룹이다. 이 그룹은 스토리지 및 네트워크를 공유하고, 해당 컨테이너를 구동하는 방식에 대한 명세를 갖는다. 파드의 콘텐츠는 항상 함께 배치되고, 함께 스케줄되며, 공유 콘텍스트에서 실행된다. 파드는 애플리케이션 별 "논리 호스트"를 모델링한다. 여기에는 상대적으로 밀접하게 결합된 하나 이상의 애플리케이션 컨테이너가 포함된다. 클라우드가 아닌 콘텍스트에서, 동일한 물리 또는 가상 머신에서 실행되는 애플리케이션은 동일한 논리 호스트에서 실행되는 클라우드 애플리케이션과 비슷하다.
애플리케이션 컨테이너와 마찬가지로, 파드에는 파드 시작 중에 실행되는 초기화 컨테이너가 포함될 수 있다. 클러스터가 제공하는 경우, 디버깅을 위해 임시 컨테이너를 삽입할 수도 있다.
파드란 무엇인가?
참고 : 도커가 가장 일반적으로 잘 알려진 컨테이너 런타임이지만, 쿠버네티스는 도커 외에도 다양한 컨테이너 런타임을 지원하며, 파드를 설명할 때 도커 관련 용어를 사용하면 더 쉽게 설명할 수 있다.
파드의 공유 콘텍스트는 리눅스 네임스페이스, 컨트롤 그룹(cgroup) 및 도커 컨테이너를 격리하는 것과 같이 잠재적으로 다른 격리 요소들이다. 파드의 콘텍스트 내에서 개별 애플리케이션은 추가적으로 하위 격리가 적용된다.
도커 개념 측면에서, 파드는 공유 네임스페이스와 공유 파일시스템 볼륨이 있는 도커 컨테이너 그룹과 비슷하다
Pod 생성 및 실행
# Pod 생성 및 실행
master@master:~$ kubectl run jinsunginx --image nginx --restart Never
pod/jinsunginx created
master@master:~$
Pod 실행 상태 확인
# Pod 실행 상태 확인
master@master:~$ kubectl get pod jinsunginx
NAME READY STATUS RESTARTS AGE
jinsunginx 1/1 Running 0 52s
master@master:~$
# Pod 정보 확인
master@master:~$ kubectl describe pod jinsunginx
Name: jinsunginx
Namespace: default
Priority: 0
Node: master/192.168.0.201
Start Time: Sun, 07 Aug 2022 04:51:41 +0000
Labels: run=jinsunginx
Annotations: <none>
Status: Running
IP: 10.42.0.4
IPs:
IP: 10.42.0.4
Containers:
jinsunginx:
Container ID: docker://f132455cc278b02f7ac431e962237eb7fa3e69537e63a4299dabf2f11f6b4e07
Image: nginx
Image ID: docker-pullable://nginx@sha256:ecc068890de55a75f1a32cc8063e79f90f0b043d70c5fcf28f1713395a4b3d49
Port: <none>
Host Port: <none>
State: Running
Started: Sun, 07 Aug 2022 04:51:52 +0000
Ready: True
Restart Count: 0
Environment: <none>
Mounts:
/var/run/secrets/kubernetes.io/serviceaccount from default-token-g8wm6 (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
default-token-g8wm6:
Type: Secret (a volume populated by a Secret)
SecretName: default-token-g8wm6
Optional: false
QoS Class: BestEffort
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled <unknown> default-scheduler Successfully assigned default/jinsunginx to master
Normal Pulling 9m7s kubelet, master Pulling image "nginx"
Normal Pulled 8m57s kubelet, master Successfully pulled image "nginx"
Normal Created 8m57s kubelet, master Created container jinsunginx
Normal Started 8m57s kubelet, master Started container jinsunginx
master@master:~$
Pod 명령 내리기
# Pod 명령 내리기
master@master:~$ kubectl exec jinsunginx -- apt update
WARNING: apt does not have a stable CLI interface. Use with caution in scripts.
Get:1 http://deb.debian.org/debian bullseye InRelease [116 kB]
Get:2 http://deb.debian.org/debian-security bullseye-security InRelease [48.4 kB]
Get:3 http://deb.debian.org/debian bullseye-updates InRelease [44.1 kB]
Get:4 http://deb.debian.org/debian bullseye/main amd64 Packages [8182 kB]
Get:5 http://deb.debian.org/debian-security bullseye-security/main amd64 Packages [170 kB]
Get:6 http://deb.debian.org/debian bullseye-updates/main amd64 Packages [2592 B]
Fetched 8563 kB in 1s (5924 kB/s)
Reading package lists...
Building dependency tree...
Reading state information...
All packages are up to date.
master@master:~$
master@master:~$
master@master:~$ kubectl exec jinsunginx -- apt install -y curl
WARNING: apt does not have a stable CLI interface. Use with caution in scripts.
Reading package lists...
Building dependency tree...
Reading state information...
curl is already the newest version (7.74.0-1.3+deb11u2).
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
master@master:~$
Pod logs 확인
# Pod 로그 확인
master@master:~$ kubectl logs jinsunginx
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Launching /docker-entrypoint.d/30-tune-worker-processes.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
2022/08/07 04:51:52 [notice] 1#1: using the "epoll" event method
2022/08/07 04:51:52 [notice] 1#1: nginx/1.23.1
2022/08/07 04:51:52 [notice] 1#1: built by gcc 10.2.1 20210110 (Debian 10.2.1-6)
2022/08/07 04:51:52 [notice] 1#1: OS: Linux 4.15.0-189-generic
2022/08/07 04:51:52 [notice] 1#1: getrlimit(RLIMIT_NOFILE): 1048576:1048576
2022/08/07 04:51:52 [notice] 1#1: start worker processes
2022/08/07 04:51:52 [notice] 1#1: start worker process 31
2022/08/07 04:51:52 [notice] 1#1: start worker process 32
2022/08/07 04:51:52 [notice] 1#1: start worker process 33
2022/08/07 04:51:52 [notice] 1#1: start worker process 34
127.0.0.1 - - [07/Aug/2022:05:11:16 +0000] "GET / HTTP/1.1" 200 615 "-" "Wget/1.21" "-"
master@master:~$
Pod 파일 이동 복사
# 로컬에서 Pod로 파일 이동 및 복사
master@master:~$ kubectl cp ~/.bashrc jinsunginx:/.
master@master:~$
master@master:~$ kubectl exec jinsunginx -- cat /.bashrc
# ~/.bashrc: executed by bash(1) for non-login shells.
# see /usr/share/doc/bash/examples/startup-files (in the package bash-doc)
# for examples
# If not running interactively, don't do anything
case $- in
*i*) ;;
*) return;;
esac
# don't put duplicate lines or lines starting with space in the history.
# See bash(1) for more options
HISTCONTROL=ignoreboth
...
Pod 값 수정
# Pod를 수정
master@master:~$ kubectl edit pod jinsunginx
# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
kind: Pod
metadata:
creationTimestamp: "2022-08-07T04:51:41Z"
labels:
run: jinsunginx
name: jinsunginx
namespace: default
resourceVersion: "1035"
selfLink: /api/v1/namespaces/default/pods/jinsunginx
uid: db8ef4a7-de65-421d-9b08-c835b8050eff
spec:
containers:
- image: nginx
imagePullPolicy: Always
name: jinsunginx
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /var/run/secrets/kubernetes.io/serviceaccount
name: default-token-g8wm6
readOnly: true
dnsPolicy: ClusterFirst
enableServiceLinks: true
nodeName: master
priority: 0
restartPolicy: Never
schedulerName: default-scheduler
securityContext: {}
serviceAccount: default
serviceAccountName: default
terminationGracePeriodSeconds: 30
tolerations:
- effect: NoExecute
key: node.kubernetes.io/not-ready
operator: Exists
tolerationSeconds: 300
- effect: NoExecute
key: node.kubernetes.io/unreachable
operator: Exists
tolerationSeconds: 300
volumes:
- name: default-token-g8wm6
secret:
defaultMode: 420
secretName: default-token-g8wm6
Pod 삭제
# 생성한 Pod 삭제하기
master@master:~$ kubectl delete pod jinsunginx
pod "jinsunginx" deleted
master@master:~$
생성된 Pod 변경(수정)
# 변경하고 싶은 Pod를 수정
master@master:~$ kubectl edit pods webapp-color
# 수정하고나면 에러로그 발생
error: pods "webapp-color" is invalid
A copy of your changes has been stored to "/tmp/kubectl-edit-3440084507.yaml"
error: Edit cancelled, no valid changes were saved.
# 해당 Pod의 yaml파일을 replace 해주면 됩니다.
master@master:~$ kubectl replace --force -f /tmp/kubectl-edit-3440084507.yaml
pod "webapp-color" deleted
pod/webapp-color replaced
